DESCRIPTION
Heavy Duty Self-Dump Hoppers
- Available in five popular sizes
- Suitable for straight-mast and extendable reach forks
- Ideal for removing concrete, plaster, brick and other construction waste

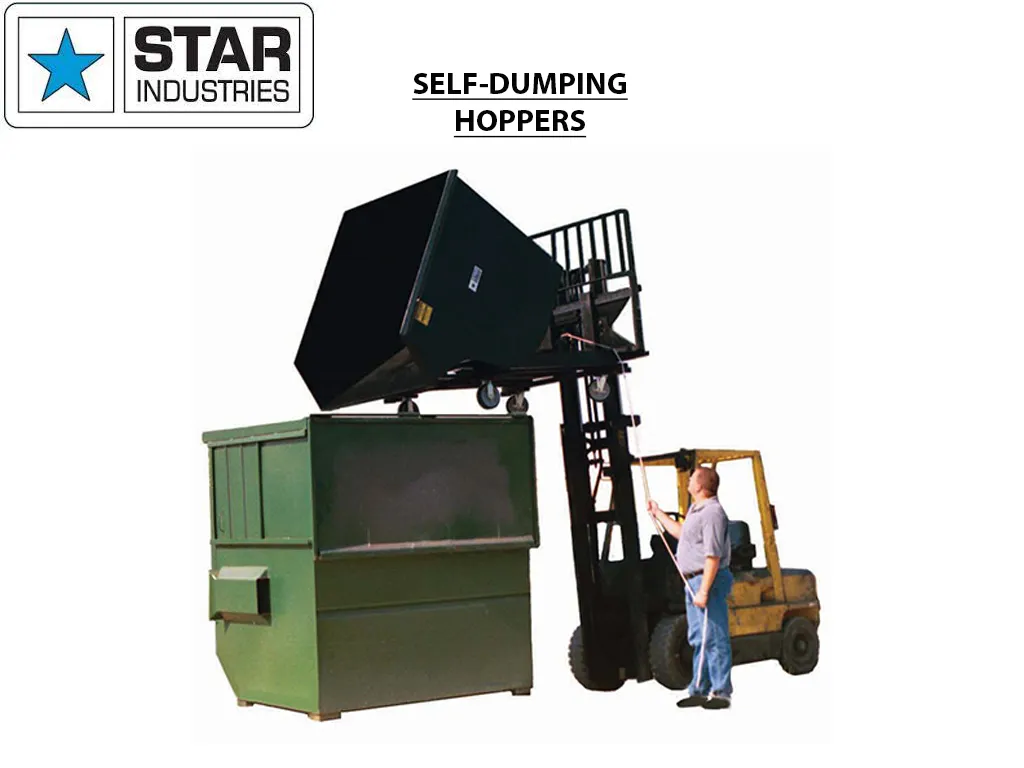

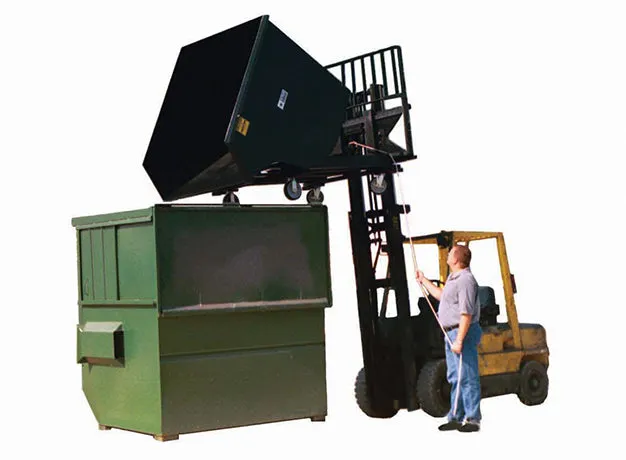

A Star Industries Self-Dump Hopper is the perfect way to collect, move and dispose of waste around the job site.
Constructed from rugged heavy-duty ¼ and 3/16 steel plate (not flimsy sheet metal) the hopper can take plenty of punishment and the large caster wheels (optional) makes it easy to wheel around the job site.
Features

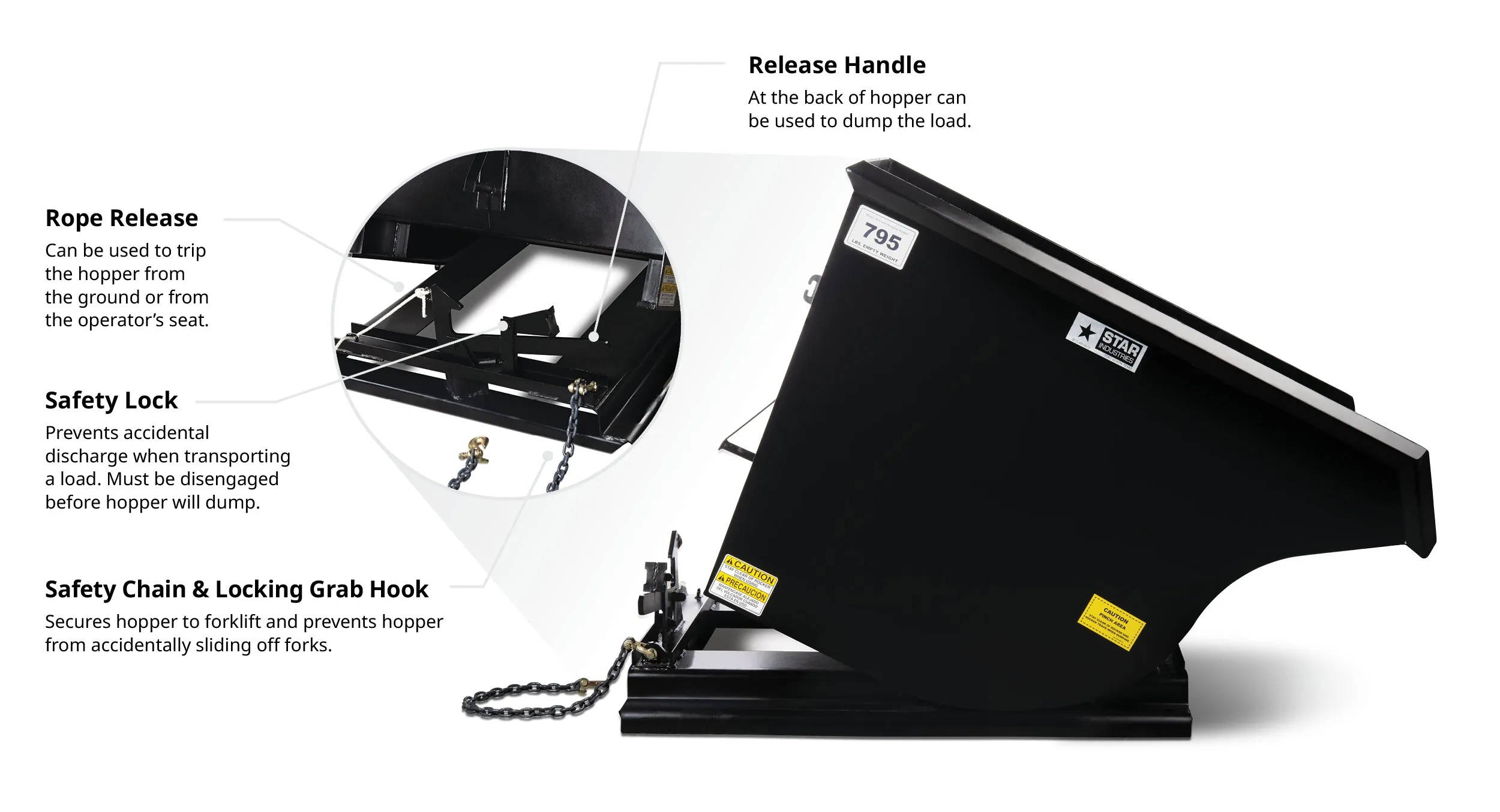

These safety features are standard on all Star self-dump hoppers:
- Rope Release - Can be used to trip the hopper from the ground or from the operator’s seat.
- Safety Lock - Prevents accidental discharge when transporting a load. Must be disengaged before hopper will dump.
- Safety Chain & Locking Grab Hook - Secures hopper to forklift and prevents hopper from accidentally sliding off forks.
- Release Handle - At the back of hopper can be used to dump the load.
Hopper Options

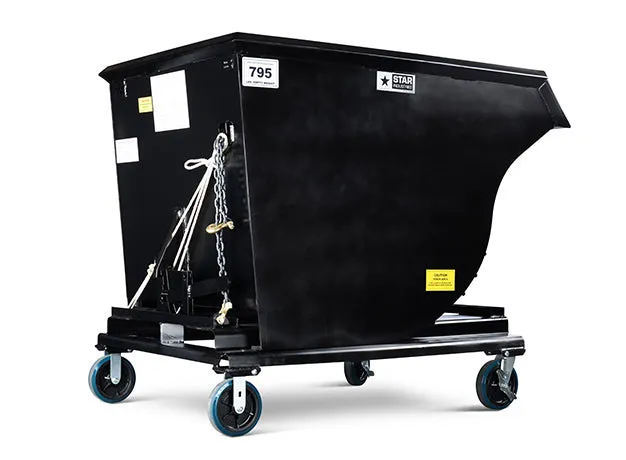

Heavy-Duty Casters | Model 1000-0510
Optional heavy-duty steel casters featuring 8” diameter polyurethane wheels with roller bearing
Lifting Hooks | Model 1800-LH
Optional Lifting Hooks (eyes) for handling hoppers with a crane Note: Hopper can not be discharged while suspended with a crane.
SPECIFICATIONS
| Model | Capacity | Weight Capacity (w/o casters) | Base Dimensions | Top Dimensions | Overall Height (w/o casters) |
Weight (w/o casters) |
Fork Opening Width | Fork Opening Height |
|---|---|---|---|---|---|---|---|---|
| 1805N | ½ cuyd. | 4,000 lbs. | 42” x 32” | 49” x 32” | 36” Lowest Lip -30.25″ |
460 lbs | 23 ½” | 2 ¾” ID |
| 1810 | 1 cuyd. | 6,000 lbs. | 48” x 39” | 62” x 39” | 39” Lowest Lip -30.25″ |
645 lbs | 30 ¼” | 2 ¾” ID |
| 1815 | 1 ½ cuyd. | 6,000 lbs. | 55” x 43” | 67” x 45” | 46” Lowest Lip -30.25″ |
795 lbs | 35 ½” | 2 ¾” ID |
| 1820 | 2 cuyd. | 6,000 lbs. | 57” x 58” | 66” x 57” | 48” Lowest Lip -30.25″ |
965 lbs | 32” | 2 ¾” ID |
| 1825 | 2 ½ cuyd. | 6,000 lbs. | 57” x 58” | 67” x 57” | 55” Lowest Lip -30.25″ |
995 lbs | 32” | 2 ¾” ID |
